Guide to AI integration patterns for enterprise-scale systems

Designing AI into a complex system – a platform with multiple user roles, interconnected workflows, and high-stakes decisions – is an entirely different challenge from embedding AI into a small, single-purpose app.

In complex systems, placement, interaction style, and visual framing can determine whether AI becomes a trusted collaborator or a distracting novelty. While AI might excel technically, a poor interface choice can lead to underuse and even outright rejection.

The role of the product designer is to bridge the gap between AI capability and human adoption. The best way to do that is through patterns, which you’ll recognize as reusable solutions to recurring design challenges. Patterns give us a shared language and tested strategies for AI embeds in a way that feels natural, helpful, and reliable.

This eight-part guide is a design-focused exploration of UI patterns for AI in complex systems. It offers recommendations on when to use each pattern, how to structure it visually, and how to combine patterns without overwhelming the user.

1. The role of patterns in complex AI UX

It’s easy to treat a design pattern as a final UI. In reality it’s more of a blueprint. For AI in complex systems, patterns help decide:

• Placement: Where in the interface should AI live to be most effective?
• Timing: When should AI be proactive versus reactive?
• Interaction style: Should it be conversational, command-based, or embedded directly into the workflow?

In high-stakes systems like healthcare record software or network operations dashboards, the wrong choice can lead to AI features being ignored or, worse, misused.

The goal is contextual harmony: AI should appear exactly where and when it’s needed, be silent when it’s not, and be transparent about what it’s doing.

Patterns provide the blueprint for achieving this harmony.

2. Foundational design patterns to know

Before diving into core placements, it’s worth establishing foundational approaches that cut across multiple contexts. These patterns solve recurring problems in discoverability, trust, and workflow continuity.

Ambient intelligence

AI should feel like a natural extension of the system, not a bolted-on extra. The ambient intelligence pattern integrates suggestions subtly into the workflow, appearing only when context makes them valuable.

Example: A project management tool offering AI-powered timeline optimizations only when a resource conflict is detected.

Progressive enhancement

Respect existing workflows. Most users have some level of existing system expertise based on past usage; AI should layer on top of familiar tools rather than replacing them wholesale.

Example: An email client adding AI-powered smart replies alongside traditional reply buttons.

AI co-pilot

AI works best as a collaborator, not a substitute. This pattern places AI insights side-by-side with traditional data and controls, keeping human judgment in the loop.

Example: A BI dashboard surfacing AI-detected anomalies next to existing charts.

Contextual activation

AI should surface when it matters most, not sit permanently in view or wait for obscure manual triggers. Contextual activation makes AI timely and useful without adding cognitive load.

Example: A code editor activating AI-powered debugging when it detects repeated syntax errors.

Explainable AI

Trust depends on understanding. Explanations should be layered, offering simple rationale by default with optional detail available for advanced users.

Example: A loan approval system showing a simple “Approved strong credit history” message with expandable details on influencing factors.

Human-in-the-loop

Critical decisions require human oversight. Design fast review flows that highlight risk and let humans correct the system naturally.

Example: A content moderation system escalating borderline cases to human reviewers with supporting evidence highlighted clearly.

Graceful degradation

AI sometimes fails. Models go down, data shifts, or confidence drops. Build intentional fallback paths so users can still complete their work without feeling abandoned.

Example: A fraud detection system falling back to manual review queues when the AI service is unavailable.

3. Core UI patterns for complex systems

Beyond foundation patterns, mature systems benefit from a compact set of placements. Each placement comes with strengths, trade-offs, and best-fit scenarios.

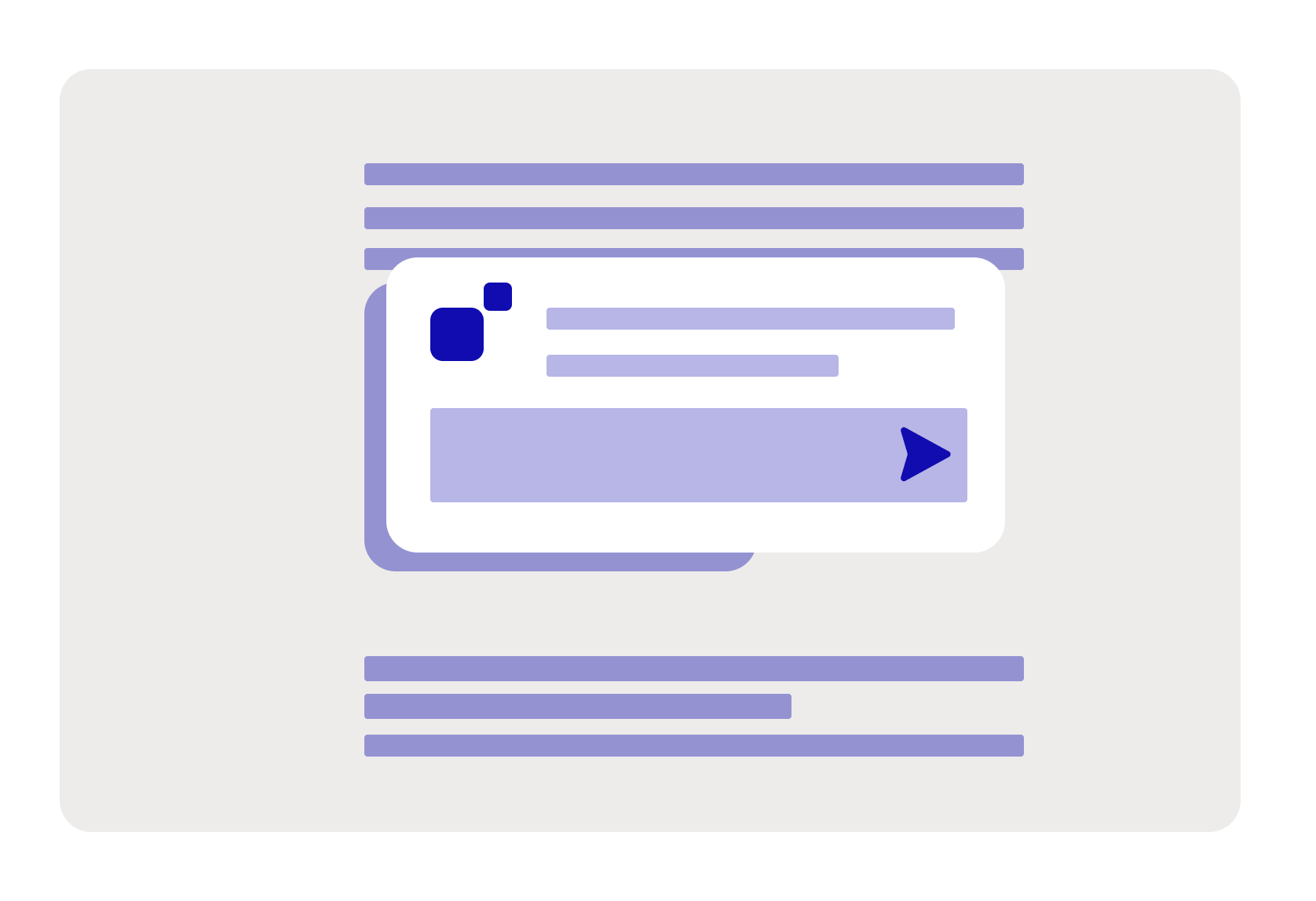

Embedded contextual assistance

Best for domain-specific, in-flow tasks where context matters deeply, like medical diagnoses, financial reporting, or legal reviews.

AI is embedded directly into the interface: icons, inline buttons, or smart chips tied to the exact element being worked on. Users can act on suggestions in place, without context switching.

Why it works: Context is preserved, adoption is natural, and friction is low.

Pitfalls: Too many prompts can clutter layouts, and unclear scope can lead to mistrust.

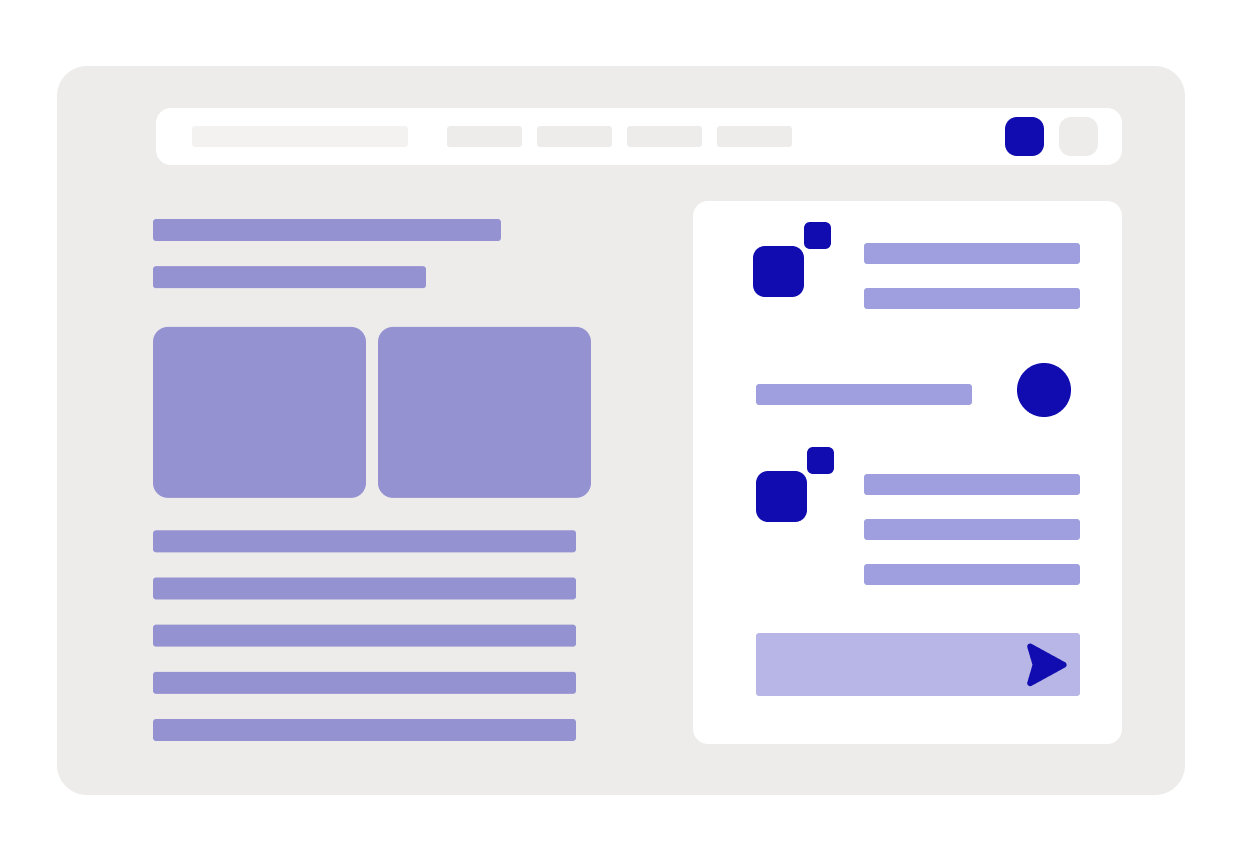

Side-panel copilot

Best for multi-step tasks that need iteration and refinement, such as research synthesis, product planning, or code review. Here, the AI lives in a collapsible panel, providing space for history, reasoning, and deeper synthesis while leaving the main canvas intact.

Why it works: Persistent yet secondary. Users can explore AI support without losing their working context.

Pitfalls: Users tend to ignore panels that can’t collapse or feel generic.

Command bar with AI

Best for power users who value speed and precision. Command bars are common in engineering, design, and analysis.

AI is invoked with a global shortcut (Cmd+K), giving immediate access to queries, commands, and navigation.

Why it works: Keeps AI one keystroke away. Offers flexibility and speed without bloating the UI.

Pitfalls: Higher learning curve; rigid commands can reduce exploration.

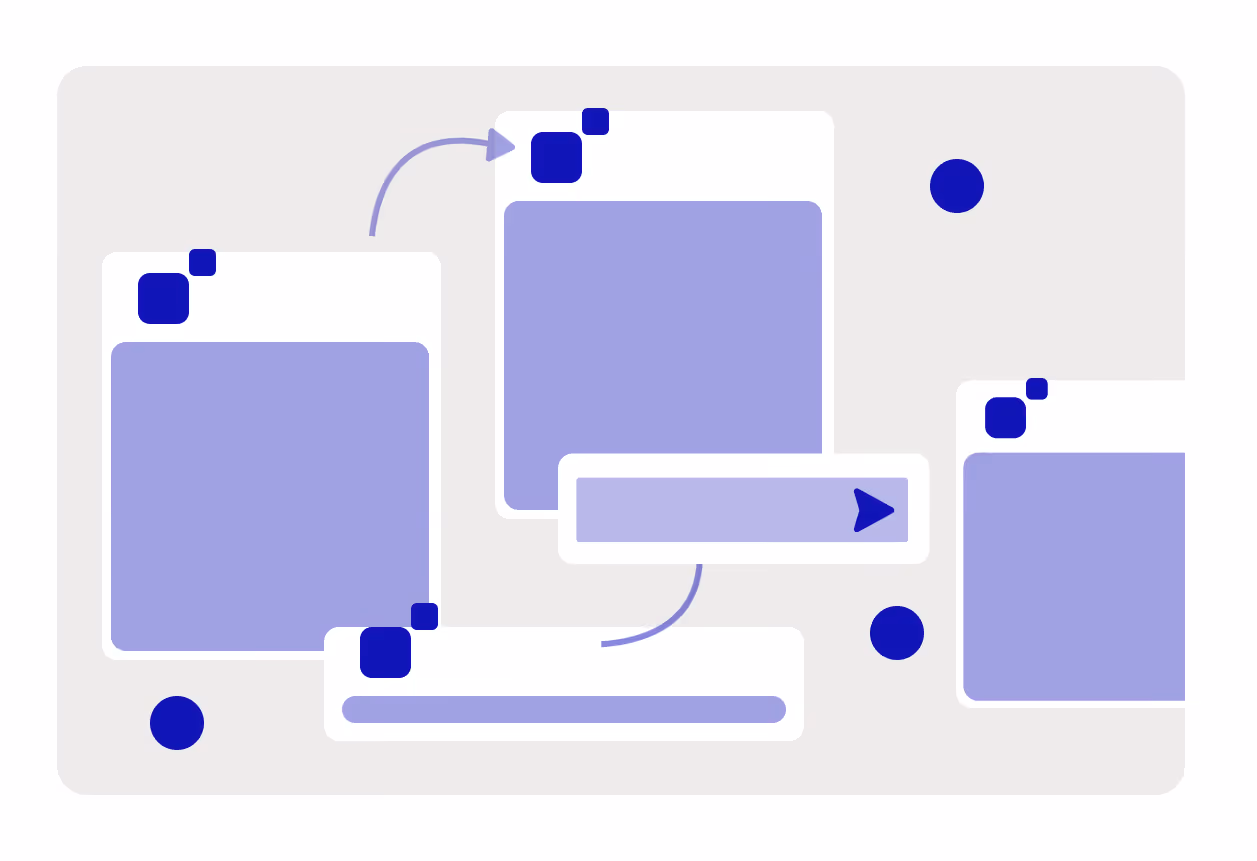

Collaborative canvas AI

Best for visual problem-solving: strategy mapping, multi-team planning, or creative ideation.

AI acts as a co-creator, clustering, generating, or linking elements on an infinite canvas.

Why it works: Supports spatial reasoning and collective workflows.

Pitfalls: Over-automation risks making canvases chaotic or impersonal.

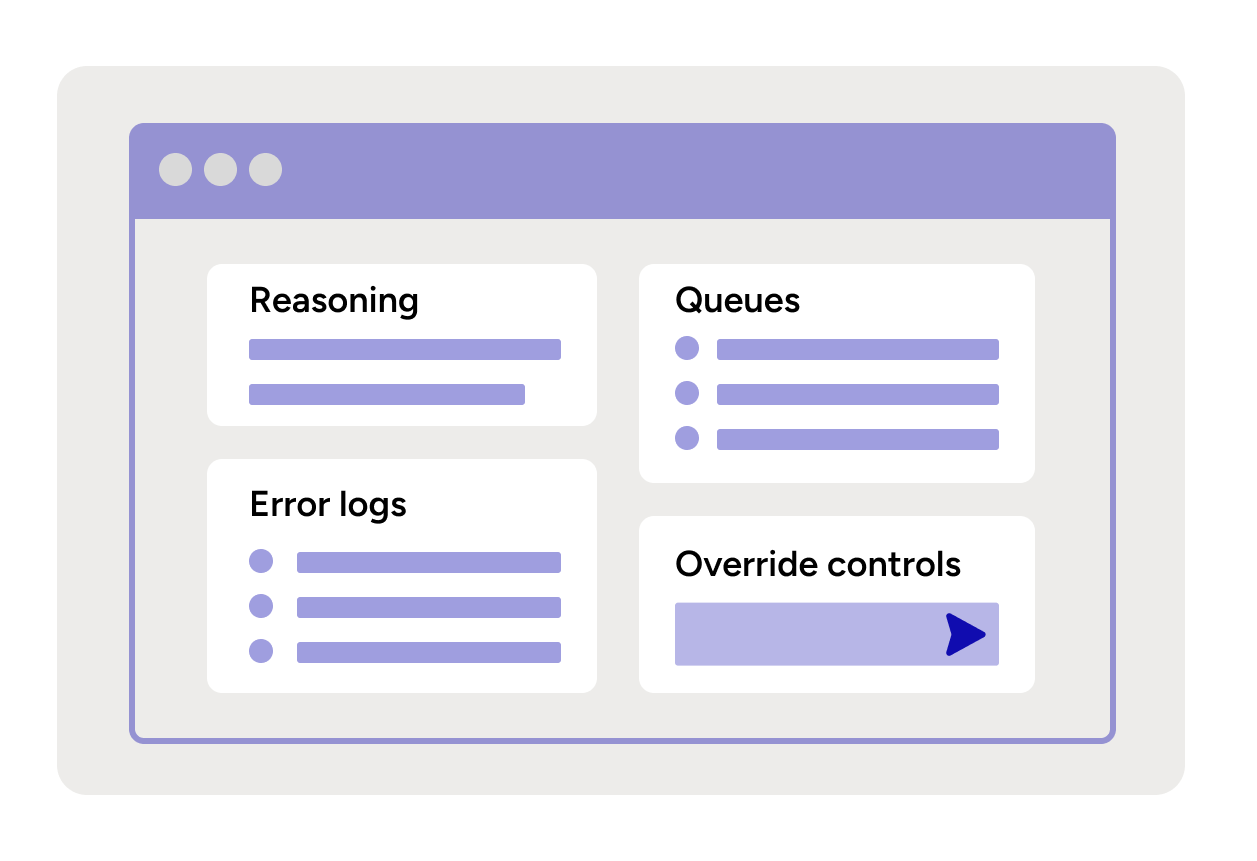

System-level agent dashboard

Best for continuous or autonomous AI tasks: fraud detection, trading, or manufacturing optimization.

A dedicated dashboard surfaces reasoning, queues, error logs, and override controls.

Why it works: High transparency and control in high-stakes contexts.

Pitfalls: Overly technical jargon or passive dashboards can undermine adoption.

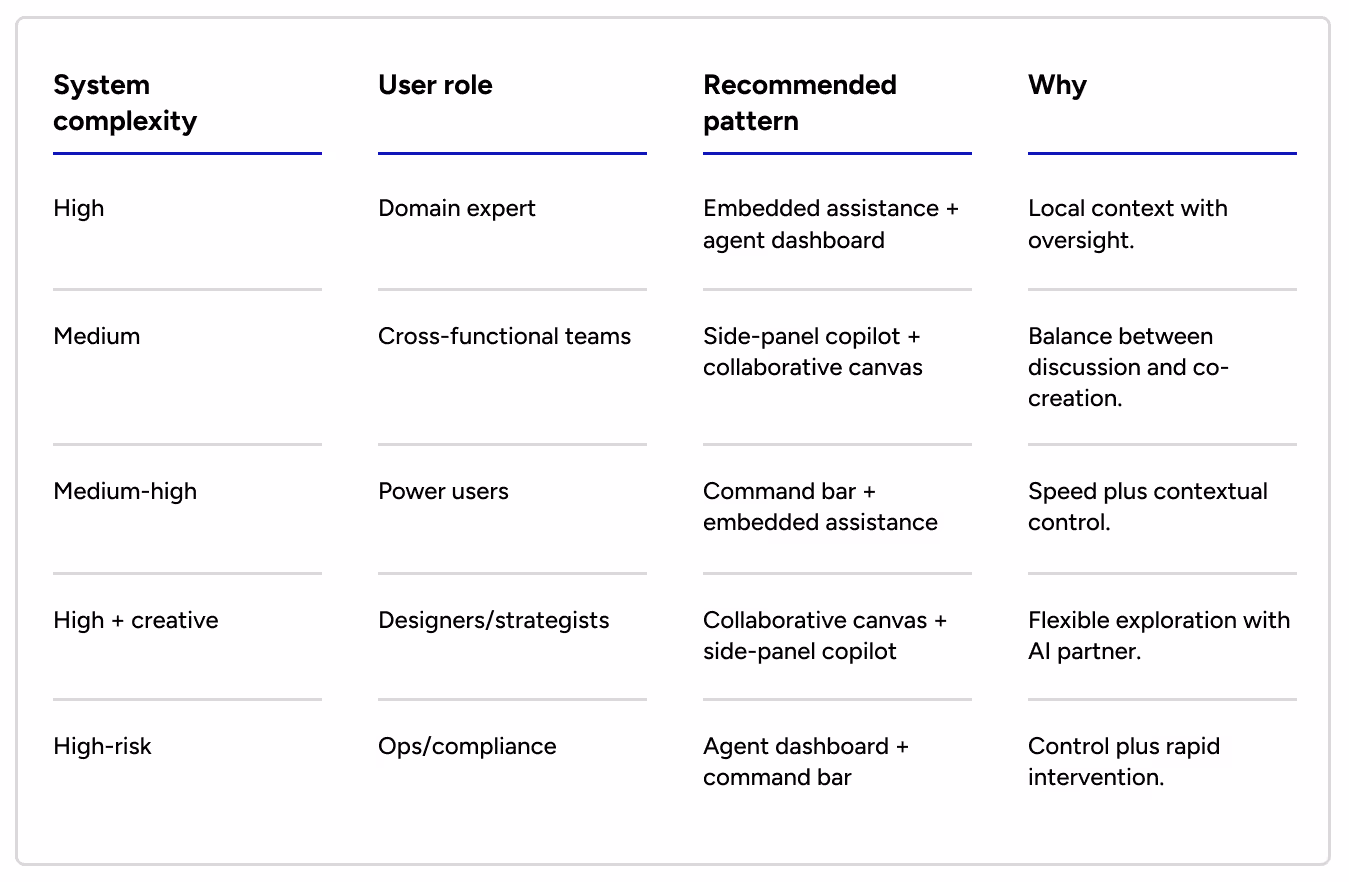

4. How to choose and combine patterns

Real systems rarely use one pattern alone. Combinations help cover both micro and macro workflows.

5. Design recommendations across patterns

By adhering to certain principles, you can ensure that AI is useful rather than disruptive. That goes for AI embedded into workflows, surfaces, or agents. Below are five specific guidelines to consistently build experiences that feel intuitive, trustworthy, and flexible.

1. Anchor AI close to the work to minimize context switching.
2. Make AI discoverable, not distracting. Progressive disclosure is better than constant prompts.
3. Show reasoning clearly, especially where trust and risk are at stake.
4. Support refinement loops. Users rarely accept outputs on the first try.
5. Design for reversibility. Diffs, undo, and overrides must be standard.

6. Taking the phased integration approach

Rolling out AI all at once is a recipe for friction. Instead, introduce capabilities in stages that mirror how your users naturally develop a comfort level with new tools. In the following three-phase approach, for example, each phase deepens engagement without forcing adoption.

• Phase 1: Foundation building
  Ambient intelligence and progressive enhancement. Establish presence without disrupting workflows.


• Phase 2: Trust development
  Explainable AI and human-in-the-loop. Build confidence before autonomy.


• Phase 3: Experience expansion
  Advanced placements like multi-modal, dashboards, and co-creation canvases. Let users grow into richer AI capabilities.

7. Preparing for the future

Given the pace of change in enterprise AI, the patterns that work today will soon need to do more. For interfaces that adapt in real time, for instance, and that expose multi-agent coordination. Start thinking about these shifts now:

• Adaptive Placement: Interfaces that shift AI prominence dynamically based on urgency and complexity.
• Multi-Agent Views: Dashboards showing which AI agents acted, when, and why.
• Context-Rich Overlays: AI embedded directly into operational dashboards with live data.
• Ethics Mode: Interface states that highlight bias checks, privacy, and data provenance.

8. Anti-patterns to avoid

Not every integration pattern is necessary. Some feel natural in demos, but sometimes collapse in production. For example:

• Everything as chat
  Chat adds friction when the task isn’t conversational. Use it selectively.


• Opaque scope
  Users must know what the AI sees and what it will change before committing.


• Irreversible commits
  Silent applies without diffs or undo undermines trust.


• Provenance buried in docs
  Sources and rationale belong in the UI, not hidden away in documentation.


• Vanity metrics
  Tracking only clicks or acceptance rates hides real value. Measure persistence and repair instead.

Each shortcut erodes confidence. Avoiding them is as critical as adopting the right patterns.

Patterns make for better AI augmentation

Intelligence alone doesn’t comprise the full value of AI. Achieving that value depends on how AI is framed and embedded, a bedrock principle of any pattern work.

The right patterns ensure AI feels like a natural extension of the system: an invisible partner when you don’t need it, a powerful collaborator when you do. By applying these patterns and retiring anti-patterns, designers can deliver AI that works with the workflow, with the system, and most importantly, with the user.
